MULTI-CYCLONE-UNIT 24x4
MULTI-CYCLONE-UNIT 24x4
MULTI-CYCLONE-UNIT 24x4
MULTI-CYCLONE_UNIT 24x4

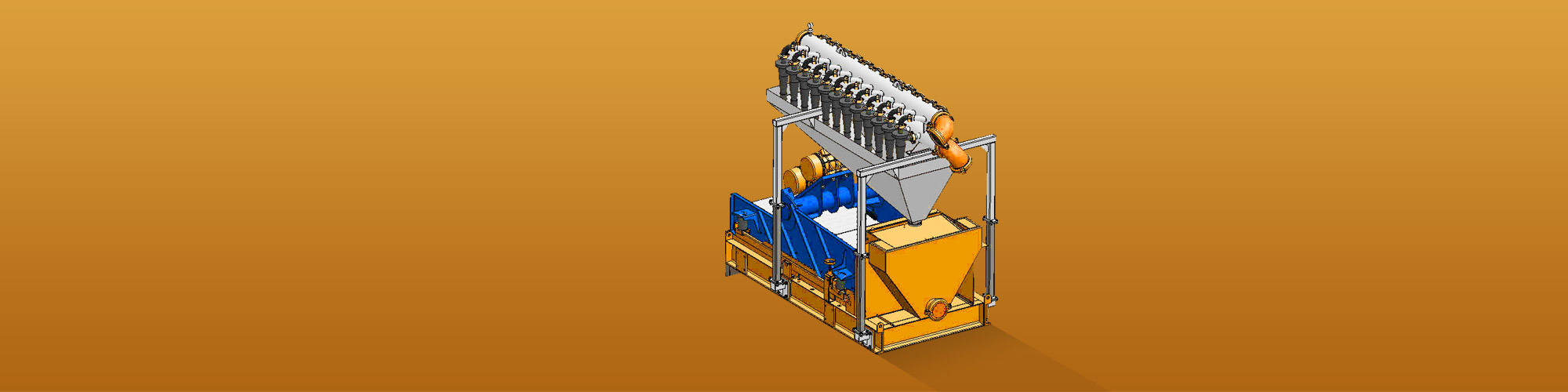

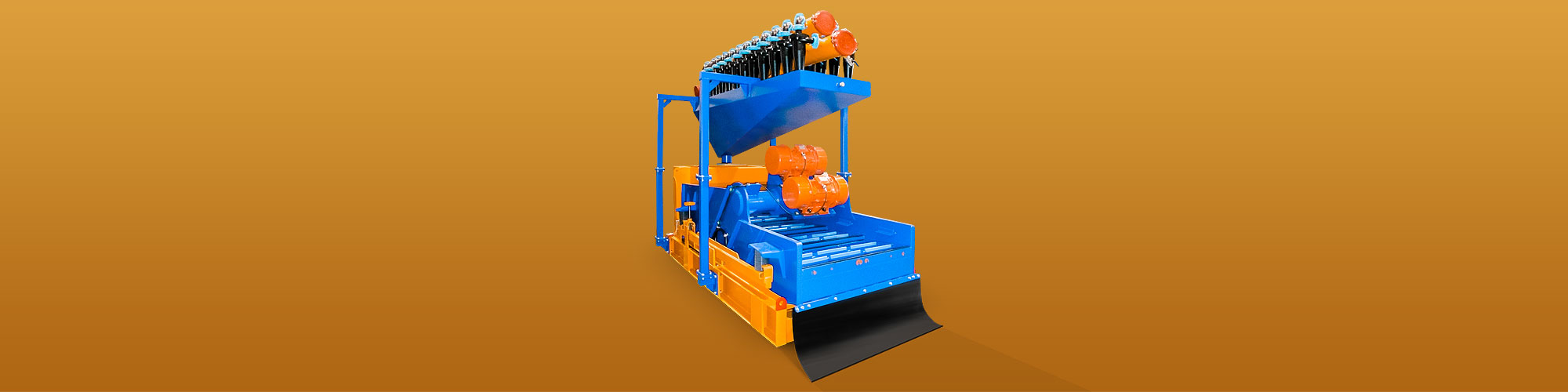

The DSE Multi-Cyclone-Unit 24x4 separation plant is designed to dewater heterogeneous solid-liquid mixtures. Therefore the machine is equipped with 24 hydrocyclones (4” each) and 4 panel screens.
The DSE Multi-Cyclone-Unit is an optimal extension for DSE TSP300 Separation plants.
The Multi-Cyclone-Unit includes supporting frame, piping, manifold, overflow header and fittings. Furthermore a 4PSM screening machine, pump package and an electrical cabinet are installed at the multi-cyclone-unit.
The vibration screening machines 4PSM with fully inclination adjustment capability and feed box is equipped with 4 panel screens incl. screen equipment.
The single-deck vibration screening machine can easily and flexibly be equipped with a wide range of different panel screens made of steel or polyurethane which are available from 4mm mesh width down to 45μm.
The Multi-Cyclone-Unit is fed by a heavy-duty centrifugal feed pump package, which includes one (1) heavy-duty feed pump type Warman 200-200 DMU, one (1) coupling, one (1) motor, (1) baseplate and one (1) electrical cabinet .
Vibration screening machine 4PSM
| Length | 3 300 mm |
| Width | 1 880 mm |
| Height | 1 600 mm |
Pump package
| Length | 2 390 mm |
| Width | 1 020 mm |
| Height | 1 900 mm |
Vibration screening machine and cyclone-unit
| Length | 3 200 mm |
| Width | 2 400 mm |
| Height | 2 720 mm |
| Height | 5 700 mm (installed) |
| Total weight (ca.) | 5 100 kg |
| Nominal fluid capacity (max.)¹ | 335 m³/h |
| Total power supply | 78 kW |
¹ je nach Zusammensetzung des zu separierenden Materials können die Werte variieren bzw. höher sein
Vibration screening machine 4PSM
| Number installed | 1 no |
| Number of decks (each) | 1 no |
| Deck angle adjustment | -5° bis +3° |
| Total screen area | 3.2 m² |
| Screen panels per shaker | 4 no |
Vibration motors
| Rated power (each with) | 2 x 3.6 kW |
| Voltage | 400V / 50Hz / 3phase |

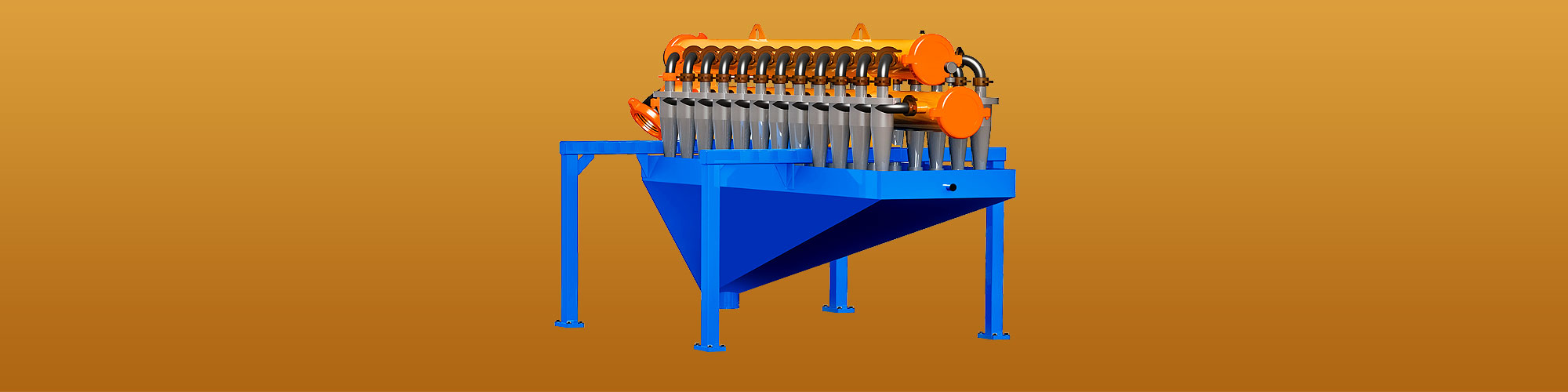

Multi-cyclone-unit 24x4
| Number installed | 24 no |
| Diameter/cone size | 100 mm (4“) |
| Cut point d50 | 25 μm |
Centrifugal feed pump
| Number installed | 1 no |
| Rated power² | 75 kW |
| Voltage | 400V / 50Hz / 3phase |
1.The capacity is subject to the slurry properties, solids loading, grain size distribution, screen selection, and properties along
2. subject to change
